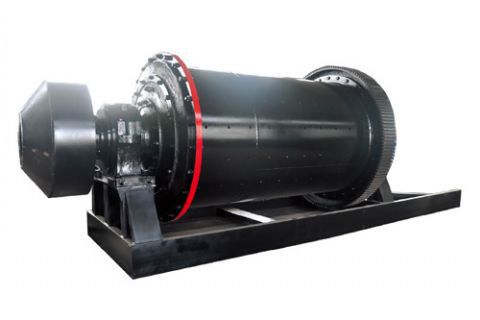

MQG系列滚动轴承球磨机
产品特点:
之轴承采用了大直径双列调心滚子轴承,代替原来的滑动轴承,减少了摩擦,降低能耗,磨机启动容易。
选用说明:
用户选用时,注明球磨机旋向,排料方式。
技术参数:
型号 |
规格 |
筒体转速(r/min) |
装球总量(t) |
给料粒度(mm)
|
电动机 |
生产量(t/h) |
机重/kg |
外形尺寸(mm) (长×宽×高) | |
型号 |
功率/KW | ||||||||
MQG0912 |
Φ900×1200 |
41.6 |
1.1 |
0-25 |
Y180L-8 |
11 |
0.3-0.9 |
4210 |
3843×1850×1400 |
MQG0921 |
Φ900×2100 |
41.6 |
1.8 |
0-25 |
Y180L-6 |
15 |
0.6-1.5 |
6660 |
4743×1850×1400 |
MQG0933 |
Φ900×3300 |
41.6 |
2.8 |
0-25 |
Y225M-6 |
30 |
0.9-2.3 |
7770 |
5843×1850×1400 |
MQG1224 |
Φ1200×2400 |
35.1 |
4.0 |
0-25 |
Y280S-8 |
37 |
1.6-4.1 |
10020 |
5540×2300×1850 |
MQG1228 |
Φ1200×2800 |
35.1 |
4.6 |
0-25 |
Y280M-8 |
45 |
1.9-4.8 |
10935 |
5940×2300×1850 |
MQG1232 |
Φ1200×3200 |
35.1 |
5.3 |
0-25 |
Y280M-8 |
45 |
2.2-5.5 |
11230 |
6340×2300×1850 |
MQG1244 |
Φ1200×4400 |
35.1 |
7.3 |
0-25 |
Y315S-8 |
55 |
3.0-7.5 |
13210 |
7540×2300×1850 |
MQG1324 |
Φ1300×2400 |
30.2 |
4.5 |
0-25 |
Y280S-8 |
37 |
1.5-3.5 |
10210 |
5035×2370×1880 |
MQG1328 |
Φ1300×2800 |
30.2 |
5.2 |
0-25 |
Y280M-8 |
45 |
2.0-4.5 |
11290 |
5435×2370×1880 |
MQG1334 |
Φ1300×3400 |
30.2 |
6.5 |
0-25 |
Y315S-8 |
55 |
2.2-5.0 |
13117 |
6035×2370×1880 |
MQG1524 |
Φ1500×2400 |
30.7 |
7.0 |
0-25 |
Y315S-8 |
55 |
2.8-6.5 |
15430 |
6830×2930×2060 |
MQG1530 |
Φ1500×3000 |
30.7 |
9.0 |
0-25 |
JR117-8 |
80 |
3.5-8.0 |
16843 |
7430×2930×2060 |
MQG1533 |
Φ1500×3300 |
30.7 |
10.0 |
0-25 |
JR125-8 |
95 |
4.0-9.0 |
17849 |
7730×2930×2060 |
MQG1536 |
Φ1500×3600 |
30.7 |
11.0 |
0-25 |
JR125-8 |
95 |
4.5-10.0 |
18649 |
8030×2930×2060 |
MQG1542 |
Φ1500×4200 |
30.7 |
12.5 |
0-25 |
JR126-8 |
110 |
5.0-11.0 |
19330 |
8630×2930×2060 |
MQG1545 |
Φ1500×4500 |
30.7 |
13.5 |
0-25 |
JR126-8 |
110 |
5.5-13.5 |
20000 |
8930×2930×2060 |
MQG1557 |
Φ1500×5700 |
30.7 |
17.0 |
0-25 |
JR127-8 |
130 |
7.0-15.5 |
23597 |
10130×2930×2060 |
MQG1563 |
Φ1500×6300 |
30.7 |
19.0 |
0-25 |
JR128-8 |
155 |
8.0-17.0 |
24390 |
10730×2930×2060 |
MQG1830 |
Φ1830×3000 |
25.04 |
13.0 |
0-25 |
JR127-8 |
130 |
3.0-17.0 |
29490 |
9625×3960×2250 |
MQG1834 |
Φ1830×3400 |
25.04 |
14.0 |
0-25 |
JR128-8 |
155 |
3.3-20.0 |
30390 |
9625×3960×2250 |
MQG1836 |
Φ1830×3600 |
25.04 |
15.0 |
0-25 |
JR128-8 |
155 |
4.0-21.5 |
31600 |
10125×3960×2250 |
MQG1840 |
Φ1830×4000 |
25.04 |
17.0 |
0-25 |
JR128-8 |
155 |
4.5-24.0 |
32700 |
10525×3960×2250 |
MQG1842 |
Φ1830×4200 |
25.04 |
18.0 |
0-25 |
JR136-8 |
180 |
5.0-25.0 |
33490 |
10725×3960×2250 |
MQG1844 |
Φ1830×4400 |
25.04 |
19.0 |
0-25 |
JR136-8 |
180 |
5.2-26.0 |
34210 |
10925×3960×2250 |
MQG1852 |
Φ1830×5200 |
25.04 |
21.0 |
0-25 |
JR136-8 |
180 |
6.5-32.5 |
37715 |
11725×3960×2250 |
MQG1864 |
Φ1830×6400 |
25.04 |
27.0 |
0-25 |
JR137-8 |
210 |
8.0-40.0 |
42440 |
12925×3960×2250 |
MQG2122 |
Φ2100×2200 |
23.8 |
15.0 |
0-25 |
JR127-8 |
130 |
3.0-22.0 |
38793 |
7775×4060×3400 |
MQG2130 |
Φ2100×3000 |
23.8 |
20.0 |
0-25 |
JR136-8 |
180 |
4.0-30.0 |
41965 |
8475×4060×3400 |
MQG2136 |
Φ2100×3750 |
23.8 |
21.0 |
0-25 |
JR137-8 |
210 |
5.0-37.0 |
44551 |
9225×4060×3400 |
MQG2140 |
Φ2100×4000 |
23.8 |
22.0 |
0-25 |
JR138-8 |
245 |
5.2-39.0 |
46697 |
9475×4060×3400 |
MQG2145 |
Φ2100×4500 |
23.8 |
25.0 |
0-25 |
JR1410-8 |
280 |
5.6-42.0 |
49320 |
9975×4060×3400 |
MQG2436 |
Φ2400×3600 |
23.0 |
26.6 |
0-25 |
JR1410-8 |
280 |
6.5-82.0 |
63684 |
9770×5005×3970 |
MQG2444 |
Φ2400×4400 |
23.0 |
32.5 |
0-25 |
JR158-8 |
380 |
8.0-100 |
72284 |
10570×5005×3970 |
MQG2736 |
Φ2700×3600 |
21.7 |
34.0 |
0-25 |
JR1512-8 |
420 |
15.0-115 |
88400 |
10575×5610×4500 |
MQG2745 |
Φ2700×4500 |
21.7 |
40.0 |
0-25 |
JR1512-8 |
475 |
17.5-135 |
90420 |
11175×5610×4500 |
MQG3230 |
Φ3200×3000 |
18.7 |
44.0 |
0-25 |
TDMK500-36 |
500 |
50.0-90.0 |
124000 |
11000×7200×5700 |
MQG3245 |
Φ3200×4500 |
18.7 |
65.0 |
0-25 |
TDMK630-36 |
630 |
100-145 |
145000 |
13000×7200×5700 |
MQG3645 |
Φ3600×4500 |
17.5 |
76.0 |
0-25 |
TM1000-36/2600 |
1000 |
158.6-235.2 |
135000 |
15000×7200×6326 |
MQG3650 |
Φ3600×5000 |
17.5 |
86.0 |
0-25 |
TM11250-40/3250 |
1250 |
174.4-261.6 |
145000 |
17157×7755×6326 |
MQG3660 |
Φ3600×6000 |
17.5 |
102 |
0-25 |
TM11250-40/3250 |
1250 |
184-276 |
154000 |
19000×7755×6326 |
