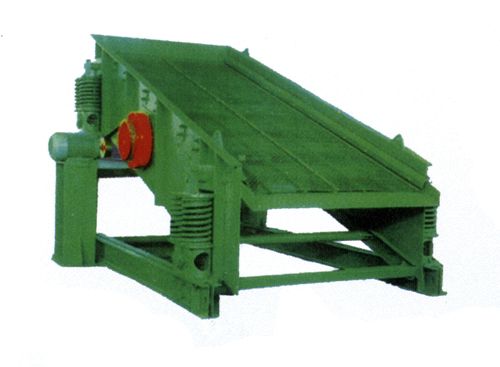

YA系列圆振筛
产品特点：YA系列圆振动筛实际上也属于自定中心振动筛这一类型，采用国际先进的环槽铆钉，板框式筛箱框架结构，偏心轴加偏心块式振动器，高性能齿轮传动系统，低应力减震弹簧和超重型大游隙轴承及稀油润滑等先进工艺和技术，具有筛框结构强度高，机械结构合理，大游隙轴承运转温度低、运行噪音小、使用寿命长、生产安全可靠切易于维护等特点。
技术参数：
|
型号 |
筛面 |
给料粒度 |
处理量(t/h) |
振次mm-1 |
双振幅 |
电动机 |
外形尺寸 |
总重 |
每支点工作动负荷 |
最大动负荷 | ||||||||
|
现用 |
原用 |
层数 |
面积 |
倾角° |
筛孔尺寸/mm |
结构 |
型号 |
功率 |
给料端/N |
排料端/N |
给料端/N |
排料端/N | ||||||
|
YA1236 |
Ti412 |
1 |
4.3 |
20 |
6-50 |
编织 |
≤200 |
80-240 |
845 |
9.5 |
Y160M-4 |
11 |
3757×2364×2456 |
4905 |
±802 |
±802 |
±4008 |
±4008 |
|
2YA1236 |
2Ti412 |
2 |
4.3 |
20 |
6-50 |
上下编织 |
≤200 |
80-240 |
845 |
9.5 |
Y160M-4 |
11 |
3757×2364×2456 |
5311 |
±802 |
±802 |
±4008 |
±4008 |
|
YA1530 |
Ti510 |
1 |
4.5 |
20 |
6-50 |
编织 |
≤200 |
80-240 |
845 |
9.5 |
Y160M-4 |
11 |
3184×2670×2280 |
4675 |
±843 |
±843 |
±4214 |
±4214 |
|
YA1536 |
Ti512 |
1 |
5.4 |
20 |
6-50 |
编织 |
≤200 |
100-350 |
845 |
9.5 |
Y160M-4 |
11 |
3757×2670×2419 |
5137 |
±843 |
±843 |
±4165 |
±4165 |
|
2YA1536 |
2Ti512 |
2 |
5.4 |
20 |
6-50 |
上下编织 |
≤400 |
100-350 |
845 |
9.5 |
Y160L-4 |
15 |
3757×3715×2437 |
5624 |
±802 |
±802 |
±4008 |
±4008 |
|
YAH1536 |
TiS512 |
1 |
5.4 |
20 |
30-50 |
冲孔 |
≤400 |
160-650 |
755 |
9.5 |
Y160M-4 |
11 |
3757×2670×2437 |
5621 |
±931 |
±931 |
±4655 |
±4655 |
|
2YAH1536 |
2TiS512 |
2 |
5.4 |
20 |
30-200 6-50 |
上冲孔 下编织 |
≤400 |
160-650 |
755 |
11 |
Y160L-4 |
15 |
3757×2715×2437 |
6045 |
±931 |
±931 |
±4655 |
±4655 |
|
YA1542 |
Ti514 |
1 |
6.5 |
20 |
6-50 |
编织 |
≤200 |
110-385 |
845 |
9.5 |
Y160M-4 |
11 |
4331×2670×2655 |
5515 |
±802 |
±802 |
±4008 |
±4008 |
|
2YA1542 |
2Ti514 |
2 |
6.5 |
20 |
30-50 |
上下编织 |
≤200 |
110-385 |
845 |
9.5 |
Y160L-4 |
15 |
4331×2715×2675 |
6098 |
±802 |
±802 |
±4008 |
±4008 |
|
YA1548 |
Ti516 |
1 |
7.2 |
20 |
6-50 |
编织 |
≤200 |
120-420 |
845 |
9.5 |
Y160L-4 |
15 |
4904×2715×2854 |
5918 |
±847 |
±847 |
±4234 |
±4234 |
|
2YA1548 |
2Ti516 |
2 |
7.2 |
20 |
6-50 |
上下编织 |
≤200 |
120-420 |
845 |
9.5 |
Y160L-4 |
15 |
4904×2715×2861 |
6321 |
±847 |
±847 |
±4234 |
±4234 |
|
YAH1548 |
TiS516 |
1 |
7.2 |
20 |
30-50 |
冲孔 |
≤400 |
200-780 |
755 |
11 |
Y160L-4 |
15 |
4904×2715×2943 |
6842 |
±1392 |
±1392 |
±6958 |
±6958 |
|
2YAH1548 |
2TiS516 |
2 |
7.2 |
20 |
30-50 |
上冲孔 下编织 |
≤400 |
200-780 |
755 |
11 |
Y160L-4 |
15 |
4904×2715×2943 |
7404 |
±1392 |
±1392 |
±6958 |
±6958 |
|
YA1836 |
Ti612 |
1 |
6.5 |
20 |
30-150 |
编织 |
≤200 |
140-220 |
845 |
9.5 |
Y160M-4 |
11 |
3757×2975×2419 |
5205 |
±892 |
±892 |
±4460 |
±4460 |
|
2YA1836 |
2Ti612 |
2 |
6.5 |
20 |
30-150 |
上下编织 |
≤200 |
140-220 |
845 |
9.5 |
Y160L-4 |
15 |
3757×2975×2419 |
5946 |
±847 |
±847 |
±4234 |
±4234 |
|
YAH1836 |
TiS612 |
1 |
6.5 |
20 |
30-150 |
冲孔 |
≤400 |
220-910 |
755 |
11 |
Y160M-4 |
11 |
3757×2975×2437 |
5900 |
±980 |
±980 |
±4900 |
±4900 |
|
2YAH1836 |
2TiS612 |
2 |
6.5 |
20 |
30-200 6-50 |
上冲孔 下编织 |
≤400 |
220-910 |
755 |
11 |
Y160L-4 |
15 |
3757×3020×2437 |
6353 |
±980 |
±980 |
±4900 |
±4900 |
|
YA1842 |
Ti614 |
1 |
7.6 |
20 |
6-150 |
编织 |
≤200 |
140-490 |
845 |
9.5 |
Y160L-4 |
15 |
4331×3020×2675 |
5829 |
±847 |
±847 |
±4234 |
±4234 |
|
2YA1842 |
2Ti614 |
2 |
7.6 |
20 |
6-150 |
上下编织 |
≤200 |
140-490 |
845 |
9.5 |
Y160L-4 |
15 |
4331×3020×2675 |
6437 |
±847 |
±847 |
±4234 |
±4234 |
|
YAH1836 |
TiS614 |
1 |
7.6 |
20 |
30-150 |
冲孔 |
≤400 |
450-800 |
755 |
11 |
Y160L-4 |
15 |
4331×3020×2700 |
6352 |
±928 |
±928 |
±4640 |
±4640 |
|
2YAH1836 |
2TiS614 |
2 |
7.6 |
20 |
30-150 |
上冲孔 下编织 |
≤400 |
450-800 |
755 |
11 |
Y160L-4 |
15 |
4331×3020×2700 |
7037 |
±928 |
±928 |
±4640 |
±4640 |
|
YA1848 |
Ti616 |
1 |
8.6 |
20 |
6-50 |
编织 |
≤200 |
150-525 |
845 |
9.5 |
Y160L-4 |
15 |
4904×3020×2861 |
6289 |
±847 |
±847 |
±4234 |
±4234 |
|
2YA1848 |
2Ti616 |
2 |
8.6 |
20 |
6-50 |
上下编织 |
≤200 |
150-525 |
845 |
9.5 |
Y160L-4 |
15 |
4904×3023×2861 |
6624 |
±847 |
±847 |
±4234 |
±4234 |
|
YAH1836 |
TiS616 |
1 |
8.6 |
20 |
30-150 |
冲孔 |
≤150 |
250-1000 |
755 |
11 |
Y160L-4 |
15 |
4904×3023×2943 |
7122 |
±1392 |
±1392 |
±6958 |
±6958 |
|
2YAH1836 |
2TiS616 |
2 |
8.6 |
20 |
30-150 |
上冲孔 下编织 |
≤400 |
250-1000 |
755 |
11 |
Y160L-4 |
15 |
4904×3023×2943 |
7740 |
±1392 |
±1392 |
±6958 |
±6958 |
|
YA2148 |
Ti716 |
1 |
10 |
20 |
6-50 |
编织 |
≤210 |
180-630 |
748 |
9.5 |
Y180M-4 |
18.5 |
4945×3423×3515 |
9033 |
±1765 |
±1765 |
±8379 |
±8379 |
|
2YA2148 |
2Ti716 |
2 |
10 |
20 |
6-50 |
上下编织 |
≤210 |
180-630 |
748 |
9.5 |
Y180L-4 |
22 |
6092×3423×3515 |
10532 |
±1765 |
±1765 |
±8379 |
±8379 |
|
YAH2148 |
TiS716 |
1 |
10 |
20 |
13-200 |
冲孔 |
≤400 |
270-1200 |
708 |
11 |
Y180M-4 |
18.5 |
4945×3423×3501 |
10430 |
±2889 |
±2889 |
±14445 |
±14445 |
|
2YAH2148 |
2TiS716 |
2 |
10 |
20 |
30-150 |
上冲孔 下编织 |
≤400 |
270-1200 |
708 |
11 |
Y180L-4 |
22 |
6092×3423×3674 |
11190 |
±2889 |
±2889 |
±14445 |
±14445 |
|
YA2160 |
Ti720 |
1 |
12.6 |
20 |
3-50 |
编织 |
≤200 |
230-800 |
748 |
9.5 |
Y180M-4 |
18.5 |
6092×3463×3674 |
9926 |
±2495 |
±2495 |
±12475 |
±12475 |
|
2YA2160 |
2Ti720 |
2 |
12.6 |
20 |
6-50 |
上下编织 |
≤200 |
230-800 |
748 |
9.5 |
Y180L-4 |
22 |
6116×3619×3849 |
11249 |
±2495 |
±2495 |
±12475 |
±12475 |
|
YAH2160 |
TiS720 |
1 |
12.6 |
20 |
30-150 |
冲孔 |
≤400 |
350-1500 |
708 |
11 |
Y200L-4 |
30 |
6116×3619×3849 |
12490 |
±2889 |
±2889 |
±14445 |
±14445 |
|
2YAH2160 |
2TiS720 |
2 |
12.6 |
20 |
30-150 |
上冲孔 下编织 |
≤400 |
350-450 |
708 |
11 |
Y200L-4 |
30 |
6116×3619×3849 |
13858 |
±2889 |
±2889 |
±14445 |
±14445 |
|
YA2448 |
Ti816 |
1 |
11.5 |
20 |
6-50 |
编织 |
≤200 |
200-700 |
748 |
9.5 |
Y180M-4 |
18.5 |
4945×3729×3473 |
9834 |
±2495 |
±2495 |
±12475 |
±12475 |
|
YAH2448 |
TiS816 |
1 |
11.5 |
20 |
6-50 |
冲孔 |
≤400 |
310-1300 |
708 |
11 |
Y200L-4 |
30 |
4970×3925×3638 |
11830 |
±2889 |
±2889 |
±14445 |
±14445 |
|
2YAH2448 |
2TiS816 |
2 |
11.5 |
20 |
30-150 |
上冲孔 下编织 |
≤400 |
310-1300 |
708 |
11 |
Y200L-4 |
30 |
4970×3925×3638 |
13012 |
±2889 |
±2889 |
±14445 |
±14445 |
|
YA2460 |
Ti820 |
1 |
14.4 |
20 |
6-50 |
编织 |
≤200 |
260-780 |
748 |
9.5 |
Y200L-4 |
30 |
6091×3925×3850 |
12240 |
±2495 |
±2495 |
±12475 |
±12475 |
|
2YA2460 |
2Ti820 |
2 |
14.4 |
20 |
6-50 |
上下编织 |
≤200 |
260-780 |
748 |
9.5 |
Y200L-4 |
30 |
6091×3925×3850 |
13583 |
±2495 |
±2495 |
±12475 |
±12475 |
|
YAH2460 |
TiS820 |
1 |
14.4 |
20 |
30-150 |
冲孔 |
≤400 |
400-1700 |
708 |
11 |
Y200L-4 |
30 |
6091×3925×3846 |
13096 |
±2889 |
±2889 |
±14445 |
±14445 |
|
2YAH2460 |
2TiS820 |
2 |
14.4 |
20 |
30-150 |
上冲孔 下编织 |
≤400 |
400-1700 |
708 |
11 |
Y200L-4 |
30 |
6091×3925×3846 |
14455 |
±2889 |
±2889 |
±14445 |
±14445 |
