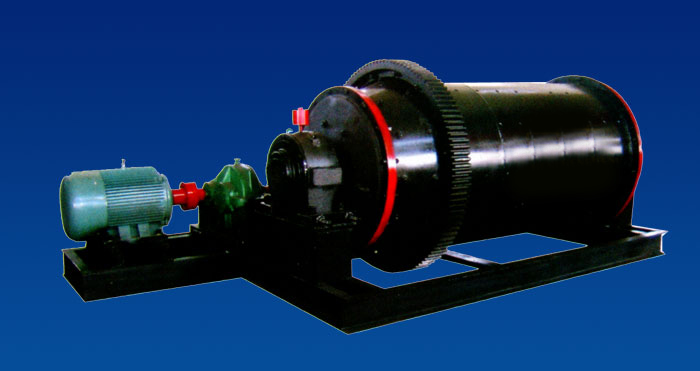

GM Series Rolling Bearing Ball Mill
GM series ball mill rolling bearing
A. Product features
This series of ball mill is modified on the basis of the old ball mill production of a new type of ball mill, has the following features:
1. The use of large diameter double LieDiao roller bearing, sliding bearing alloy instead of tile type, reduce friction, reduce the energy consumption and mill start-up easier.
2. Keep the end cover of the old mill structure, large diameter in and out of the mouth, large quantity.
3. Can choose the overall frame, high precision installation, civil engineering, installation is simple, cycle short.
4. Cancel the alignment feeder drum feeder, no inertial impact, balance of equipment operation, to reduce mill downtime maintenance time, increasing the service efficiency of the mill.
Second, the selection of specifications
When the user selects attention to ball mill, the discharge type, can also according to user requirements, change the bearing type.
GM series ball mill technical parameter table
|
Model |
Sepification |
Cylinder speed |
ball weight（t） |
Feed size |
output （t/h） |
Cooperate Motor |
Overall dimensions (L×W×H) |
Weight（kg） | |
| Model | Power（kw） | ||||||||
| GM0912 | Φ900×1200 | 41.6 | 1.1 | 0-25 | 0.3-0.9 | Y160L-6 | 11 | 3843×1850×1400 | 4210 |
| GM0921 | Φ900×2100 | 41.6 | 1.8 | 0-25 | 0.6-1.5 | Y180L-6 | 22 | 4743×1850×1400 | 6660 |
| GM0933 | Φ900×3300 | 41.6 | 2.8 | 0-25 | 0.9-2.3 | Y225M-6 | 30 | 5943×1850×1400 | 7770 |
| GM1224 | Φ1200×2400 | 35.2 | 4.0 | 0-25 | 1.6-4.1 | Y250M-8 | 30 | 5540×2300×1850 | 10020 |
| GM1228 | Φ1200×2800 | 35.2 | 4.6 | 0-25 | 1.9-4.8 | Y280S-8 | 37 | 5940×2300×1850 | 10935 |
| GM1232 | Φ1200×3200 | 35.2 | 5.3 | 0-25 | 2.2-5.5 | Y280M-8 | 45 | 6340×2300×1850 | 11230 |
| GM1244 | Φ1200×4400 | 35.2 | 7.3 | 0-25 | 3.0-7.5 | Y315M-8 | 75 | 7540×2300×1850 | 13210 |
| GM1324 | Φ1300×2400 | 30.2 | 4.5 | 0-25 | 1.5-3.5 | Y280S-8 | 37 | 5035×2370×1880 | 10210 |
| GM1328 | Φ1300×2800 | 30.2 | 5.2 | 0-25 | 2.0-4.5 | Y280M-8 | 45 | 5435×2370×1880 | 11290 |
| GM1334 | Φ1300×3400 | 30.2 | 6.5 | 0-25 | 2.2-5.0 | Y315S-8 | 55 | 6035×2370×1880 | 13117 |
| GM1524 | Φ1500×2400 | 30.7 | 6.5 | 0-25 | 2.8-6.5 | Y315S-8 | 55 | 6830×2930×2060 | 15430 |
| GM1530 | Φ1500×3000 | 30.7 | 8.1 | 0-25 | 3.5-8.0 | JR117-8 | 80 | 7430×2930×2060 | 16843 |
| GM1533 | Φ1500×3300 | 30.7 | 9.0 | 0-25 | 4.0-9.0 | JR117-8 | 80 | 7730×2930×2060 | 17849 |
| GM1536 | Φ1500×3600 | 30.7 | 9.8 | 0-25 | 4.5-10.0 | JR125-8 | 95 | 8030×2930×2060 | 18649 |
| GM1542 | Φ1500×4200 | 30.9 | 11.4 | 0-25 | 5.0-11.0 | JR126-8 | 110 | 8630×2930×2060 | 19330 |
| GM1545 | Φ1500×4500 | 30.9 | 12.5 | 0-25 | 5.5-13.5 | JR126-8 | 110 | 8930×2930×2060 | 20000 |
| GM1557 | Φ1500×5700 | 30.9 | 15.5 | 0-25 | 7.0-15.5 | JR127-8 | 130 | 10130×2930×2060 | 23597 |
| GM1563 | Φ1500×6300 | 31.1 | 17.1 | 0-25 | 8.0-17.0 | JR128-8 | 155 | 10730×2930×2060 | 24390 |
| GM1830 | Φ1830×3000 | 27 | 13.0 | 0-25 | 3.0-17.0 | JR127-8 | 130 | 9525×3960×2250 | 29490 |
| GM1833 | Φ1830×3300 | 27 | 14.0 | 0-25 | 3.3-20.0 | JR128-8 | 155 | 9925×3960×2250 | 30390 |
| GM1836 | Φ1830×3600 | 27 | 15.0 | 0-25 | 4.0-21.5 | JR128-8 | 155 | 10125×3960×2250 | 31600 |
| GM1839 | Φ1830×3900 | 27 | 17.0 | 0-25 | 4.5-24.0 | JR128-8 | 155 | 10525×3960×2250 | 32700 |
| GM1845 | Φ1830×4500 | 27.2 | 18.6 | 0-25 | 6.0-28.0 | JR136-8 | 180 | 10925×3960×2250 | 34210 |
| GM1851 | Φ1830×5100 | 27.2 | 21 | 0-25 | 8.0-50.0 | JR136-8 | 180 | 11725×3960×2250 | 37715 |
| GM1860 | Φ1830×6000 | 27.2 | 24.5 | 0-25 | 10.0-60.0 | JR138-8 | 245 | 11336×3960×2250 | 41440 |
| GM1869 | Φ1830×6900 | 27.2 | 28.5 | 0-25 | 11.0-65.0 | JR139-8 | 280 | 13525×3960×2250 | 46418 |
| GM2121 | Φ2100×2100 | 23.8 | 11.5 | 0-25 | 3.0-22.0 | JR127-8 | 130 | 7775×4060×3400 | 38793 |
| GM2130 | Φ2100×3000 | 23.9 | 16.5 | 0-25 | 4.0-30.0 | JR136-8 | 180 | 8475×4060×3400 | 41965 |
| GM2136 | Φ2100×3600 | 23.9 | 19.8 | 0-25 | 5.0-37.0 | JR136-8 | 180 | 9225×4060×3400 | 44551 |
| GM2139 | Φ2100×3900 | 23.9 | 21.5 | 0-25 | 5.2-39.0 | JR137-8 | 210 | 9475×4060×3400 | 46697 |
| GM2145 | Φ2100×4500 | 23.9 | 24.8 | 0-25 | 5.6-42.0 | JR138-8 | 245 | 9975×4060×3400 | 49230 |
| GM2163 | Φ2100×6300 | 23.9 | 35.6 | 0-25 | 5.0-70 | JR1391-8 | 320 | 11975×4060×3400 | 57612 |
| GM2169 | Φ2100×6900 | 23.9 | 38 | 0-25 | 5.9-80 | JR1392-8 | 380 | 12640×4060×3400 | 59612 |
| GM2245 | Φ2200×4500 | 23.9 | 27.32 | 0-25 | 5.8-52 | JR139-8 | 280 | 10136×5100×3890 | 64800 |
| GM2266 | Φ2200×6600 | 23.9 | 39.3 | 0-25 | 6-67 | JR1392-8 | 380 | 12700×5100×3890 | 64800 |
| GM2436 | Φ2400×3600 | 22.4 | 22.5 | 0-25 | 6.4-81.5 | JR139-8 | 280 | 9770×5000×3970 | 63684 |
| GM2445 | Φ2400×4500 | 22.4 | 28 | 0-25 | 7.9-99.2 | JR1392-8 | 380 | 10570×5000×3970 | 72284 |
| GM2458 | Φ2400×5800 | 22.4 | 35.5 | 0-25 | 10.2-120 | JR158-8 | 475 | 11870×5000×3970 | 82015 |
| GM2460 | Φ2400×6000 | 22.4 | 37 | 0-25 | 10.6-125 | JR158-8 | 475 | 12070×5000×3970 | 83680 |
| GM2736 | Φ2700×3600 | 21.7 | 28.5 | 0-25 | 15.0-115 | JR1392-8 | 380 | 10575×5610×4500 | 88400 |
| GM2742 | Φ2700×4200 | 21.7 | 33.1 | 0-25 | 17.5-135 | JR158-8 | 475 | 11175×5610×4500 | 90420 |
| GM2745 | Φ2700×4500 | 21.7 | 41 | 0-25 | 20-155 | JR158-8 | 475 | 11991×5610×4500 | 92000 |
| GM3036 | Φ3000×3600 | 19.5 | 41 | 0-25 | 22-180 | TDMK500-32 | 500 | 14725×6730×5400 | 102000 |
| GM3070 | Φ3000×7000 | 19.5 | 63.77 | 0-25 | 28-250 | TDMK1250-36 | 1250 | 18125×6830×5400 | 157000 |
| GM3230 | Φ3200×3000 | 18.7 | 33.2 | 0-25 | 50.0-90 | TDMK500-32 | 500 | 11000×7200×5700 | 124000 |
| GM3236 | Φ3200×3600 | 18.5 | 37.5 | 0-25 | 70.0-100 | TDMK630-32 | 630 | 11600×7200×5700 | 139000 |
| GM3245 | Φ3200×4500 | 18.7 | 58.0 | 0-25 | 90.0-110 | TDMK800-36 | 630 | 13000×7200×5700 | 145000 |
