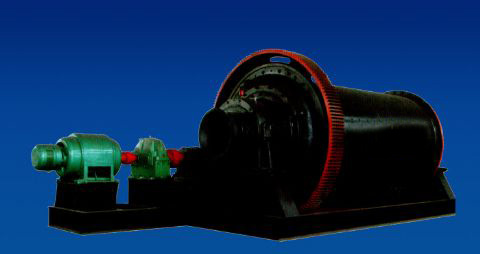

GZM Series Cone Ball Mill
A, product characteristics
This series of cone ball mill is a new energy-saving ball mill, after nearly 30 years of development and reform, has been dominant in the field of grinding. The machine has the following features:
1, the use of large diameter double LieDiao of mill roller bearings instead of ordinary sliding bearing, long service life, maintenance free, greatly reduce the friction, the actual 15-30% lower energy consumption, easy and started.
2, close to the discharge end by cone structure, make the mill reinforcement, main is to make the ball more natural classification, near the discharging mouth small steel ball diameter, abrasive material particle size.
3, can adopt the overall steel chassis, installation of high precision, easy installation, short cycle.
4, eliminating the feeder, using the drum feeder, no inertial impact, equipment running smoothly, and to reduce mill downtime maintenance time, improve the efficiency.
Second, the selection of specifications
1, the user selects, indicate the ball screw, divided into left-handed and right-handed.
2, can according to user requirements change bearing model.
GZM series cone ball mill technical parameter table
|
Model |
Sepification |
Cylinder speed |
ball weight（t） |
Feed size |
output （t/h） |
Cooperate Motor |
Overall dimensions (L×W×H) |
Weight（kg） | |
| Model | Power（kw） | ||||||||
| GZM0912 | Φ900×1200 | 41.6 | 1 | 0～15 | 0.3～0.8 | Y160L-6 | 11 | 3355×1800×1400 | 3900 |
| GZM0918 | Φ900×1800 | 41.6 | 1.6 | 0～15 | 0.4～1.1 | Y180L-6 | 15 | 3955×1800×1400 | 5430 |
| GZM0921 | Φ900×2100 | 41.6 | 1.8 | 0～15 | 0.5～1.3 | Y180L-6 | 15 | 4255×1800×1400 | 5660 |
| GZM0933 | Φ900×3300 | 42 | 2.8 | 0～15 | 0.85～2.2 | Y225M-6 | 30 | 5500×1800×1400 | 7380 |
| GZM1220 | Φ1200×2000 | 35.2 | 3.1 | 0～25 | 1.3～3.3 | Y250M-8 | 22 | 4085×2140×1760 | 8202 |
| GZM1224 | Φ1200×2400 | 35.2 | 3.7 | 0～25 | 1.6～4.1 | Y250M-8 | 30 | 4485×2140×1760 | 9103 |
| GZM1228 | Φ1200×2800 | 35.2 | 4.3 | 0～25 | 2.0～5.2 | Y280S-8 | 37 | 4885×2140×1760 | 9481 |
| GZM1232 | Φ1200×3200 | 35.2 | 4.9 | 0～25 | 2.2～5.6 | Y280M-8 | 45 | 5285×2140×1760 | 10586 |
| GZM1238 | Φ1200×3800 | 35.2 | 5.9 | 0～25 | 2.5～6.2 | Y315S-8 | 55 | 5885×2140×1760 | 11336 |
| GZM1246 | Φ1200×4600 | 35.2 | 7.1 | 0～25 | 3.0～7.5 | Y315M-8 | 75 | 6485×2140×1760 | 12420 |
| GZM1324 | Φ1300×2400 | 30.2 | 4.3 | 0～25 | 1.3～3.3 | Y280S-8 | 37 | 5035×2370×1880 | 9782 |
| GZM1328 | Φ1300×2800 | 30.2 | 5.1 | 0～25 | 1.6～4.0 | Y280M-8 | 45 | 5435×2370×1880 | 10838 |
| GZM1334 | Φ1300×3400 | 30.2 | 6.2 | 0～25 | 1.9～4.8 | Y280M-8 | 45 | 6035×2370×1880 | 12156 |
| GZM1520 | Φ1500×2000 | 31.5 | 4.8 | 0～25 | 1.8～4.5 | Y280M-8 | 45 | 5650×2930×2060 | 11037 |
| GZM1523 | Φ1500×2300 | 31.5 | 5.6 | 0～25 | 2.1～5.2 | Y315S-8 | 55 | 5950×2930×2060 | 12600 |
| GZM1526 | Φ1500×2600 | 31.5 | 6.6 | 0～25 | 2.6～6.0 | Y315S-8 | 55 | 6250×2930×2060 | 13223 |
| GZM1529 | Φ1500×2900 | 31.5 | 7.4 | 0～25 | 2.9～6.7 | Y315M-8 | 75 | 6850×2930×2060 | 13968 |
| GZM1535 | Φ1500×3500 | 30.7 | 9.0 | 0～25 | 3.5～8.0 | JR117-8 | 80 | 7450×2930×2060 | 16137 |
| GZM1538 | Φ1500×3800 | 30.9 | 9.8 | 0～25 | 3.8～8.6 | JR125-8 | 95 | 7750×2930×2060 | 17420 |
| GZM1544 | Φ1500×4400 | 31 | 11.5 | 0～25 | 4.4～9.9 | JR126-8 | 110 | 8350×2930×2060 | 18500 |
| GZM1556 | Φ1500×5600 | 31 | 14.8 | 0～25 | 5.6～13 | JR127-8 | 130 | 9550×2930×2060 | 20833 |
| GZM1565 | Φ1500×6500 | 31.1 | 17.3 | 0～25 | 6.5～15 | JR128-8 | 155 | 10450×2930×2060 | 21950 |
| GZM1836 | Φ1830×3600 | 27 | 14 | 0～25 | 2.5～11 | JR128-8 | 155 | 8400×3800×2330 | 33940 |
| GZM1840 | Φ1830×4000 | 27 | 15.5 | 0～25 | 2.8～13 | JR128-8 | 155 | 8800×3800×2330 | 34990 |
| GZM1843 | Φ1830×4300 | 27 | 16.8 | 0～25 | 3.0～14 | JR128-8 | 155 | 9000×3800×2330 | 35840 |
| GZM1849 | Φ1830×4900 | 27.2 | 19 | 0～25 | 3.5～16 | JR136-8 | 180 | 9600×3800×2330 | 37260 |
| GZM1855 | Φ1830×5500 | 27.2 | 21.7 | 0～25 | 4.0～18 | JR136-8 | 180 | 10400×3800×2330 | 39280 |
| GZM1864 | Φ1830×6400 | 27.2 | 24.4 | 0～25 | 4.6～21 | JR137-8 | 210 | 11200×3800×2330 | 41840 |
| GZM1870 | Φ1830×7000 | 27.2 | 27 | 0～25 | 4.3～23 | JR138-8 | 245 | 11800×3800×2330 | 45767 |
| GZM2126 | Φ2100×2600 | 23.8 | 12.8 | 0～25 | 3.5～25 | JR127-8 | 130 | 7455×3920×2485 | 32871 |
| GZM2129 | Φ2100×2900 | 23.8 | 14.3 | 0～25 | 3.9～27.5 | JR128-8 | 155 | 7776×3920×2485 | 34859 |
| GZM2136 | Φ2100×3600 | 23.9 | 16.7 | 0～25 | 4.5～33 | JR136-8 | 180 | 8200×3920×2485 | 37138 |
| GZM2141 | Φ2100×4100 | 23.9 | 20.1 | 0～25 | 5.0～38 | JR137-8 | 210 | 8793×3920×2485 | 39000 |
| GZM2145 | Φ2100×4500 | 23.9 | 22 | 0～25 | 6.5～43 | JR137-8 | 210 | 9306×3920×2485 | 43875 |
| GZM2150 | Φ2100×5000 | 23.9 | 25 | 0～25 | 7.0～45 | JR138-8 | 245 | 9901×3920×2485 | 46117 |
| GZM2159 | Φ2100×5900 | 23.9 | 29.7 | 0～25 | 8.0～50 | JR139-8 | 280 | 10099×3920×2485 | 55486 |
| GZM2430 | Φ2400×3000 | 22 | 20 | 0～25 | 8.0～50 | JR139-8 | 280 | 8420×4064×3594 | 54900 |
| GZM2445 | Φ2400×4500 | 22 | 27 | 0～25 | 8.0～60 | JR1391-8 | 320 | 9920×4064×3594 | 65350 |
| GZM2460 | Φ2400×6000 | 22 | 35 | 0～25 | 8.0～70 | JR158-8 | 380 | 11520×4064×3594 | 75800 |
| GZM2733 | Φ2700×3300 | 21.7 | 26 | 0～25 | 12～92 | JR1391-8 | 320 | 9010×5410×3150 | 73315 |
| GZM2736 | Φ2700×3600 | 21.7 | 28.4 | 0～25 | 12.5～98 | JR1392-8 | 380 | 9314×5410×3150 | 75410 |
| GZM2742 | Φ2700×4200 | 21.7 | 35 | 0～25 | 15～118 | JR158-8 | 475 | 10035×5410×3150 | 80647 |
| GZM2745 | Φ2700×4500 | 21.7 | 38.9 | 0～25 | 18～140 | JR158-8 | 475 | 11991×5410×3150 | 83350 |
| GZM3236 | Φ3200×3600 | 18.5 | 37.5 | 0～25 | 18～135 | TDMK630-32 | 630 | 11600×7200×5700 | 139000 |
| GZM3290 | Φ3200×9000 | 18.5 | 93.69 | 0～25 | 28~217 | TDMK1400-36 | 1400 | 17800×7300×5700 | 171000 |
| GZM3645 | Φ3600Χ4500 | 17.3 | 61.8 | 0～25 | 23~197 | TDMK1250-36 | 1250 | 15010×7230×6323 | 152000 |
| GZM3690 | Φ3600Χ9000 | 17.3 | 123.5 | 0～25 | 31~345 | TDMK1600-36 | 1600 | 19710×7330×6323 | 227000 |
| GZM4070 | Φ4000Χ7000 | 16.7 | 115.4 | 0～25 | 30~320 | TDMK2000-36 | 2000 | 18100×7890×6730 | 350000 |
