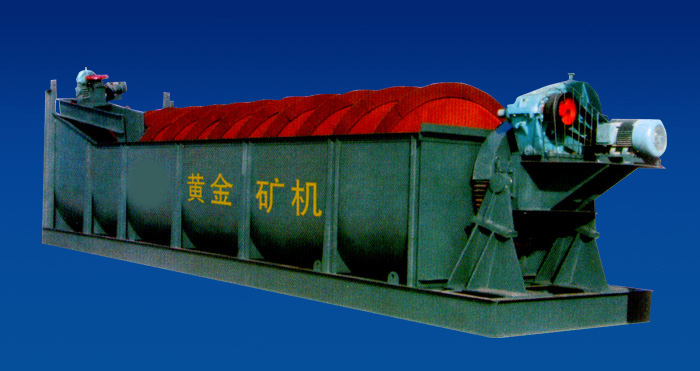

Classifier
A, product characteristics
1, to form a complete set of ball mill drum feeder with an increased sand scraper, the mortar by lateral flow mill drum feeder.
2, some models of classifier using rolling bearing instead of sliding bearing, reduce the friction resistance, avoids the frequent replacement of bearing maintenance, use ZQ or ZL type reducer, reduced the space for installation and maintenance.
3, improve the lubrication parts, big norms product equipped with dry pump, lubrication and reliable.
Second, the selection of specifications
1, when placing order, in addition to indicate the type, quantity, must also indicate the direction of spiral classifier.
2, with the relevant mill, can design according to the needs of users, making the stretched (sand return area extended, precipitation area extended), be extended.
3, the classifier points several revolutions, a user has no special requirements, according to the conventional speed production.
|
type
|
Model |
Screw rotation speed(r.p.m |
According to the sand return |
According to the overflow capacity(t/d) |
Spiral diameter(mm) |
The length of the screw(mm) |
Trough slope |
Drive motor model |
The drive motor work |
Improve motor model |
Improving the power of the motor |
Weight(kg) |
|
High weir type single screw |
FLG-300 |
8.3～22 |
30～80 |
10-30 |
φ300 |
3680 |
14-18.5 |
Y90L-6 |
1.1 |
manual |
—— |
668 |
|
FLG-500 |
8.5～15.5 |
145～260 |
21-75 |
φ500 |
4246 |
1600 |
||||||
|
FLG-750 |
2.4～9.9 |
255～564 |
65-154 |
φ750 |
4980 |
Y132S-6 |
3 |
2716 |
||||
|
FLG-1000 |
3.5～7.6 |
473～1026 |
85 |
φ1000 |
6120 |
Y132M2-6 |
5.5 |
4400 |
||||
|
FLG-1200 |
5～8 |
1165～1630 |
155 |
φ1200 |
6125 |
Y132M2-6 |
5.5 |
Y90L-4 |
1.5 |
8765 |
||
|
FLG-1500 |
2.5～6 |
1140～2740 |
235 |
φ1500 |
7940 |
Y160M-6 |
7.5 |
Y100L1-4 |
2.2 |
12500 |
||
|
FLG-2000 |
3.6～5.5 |
3890～5940 |
400 |
φ2000 |
8250 |
Y160L-6/4 |
11；15 |
Y100L2-4 |
3 |
20814 |
||
|
FLG-2400 |
3.64 |
6800 |
580 |
φ2400 |
8940 |
Y160L-4 |
15 |
Y100L2-4 |
3 |
25650 |
||
|
FLG-3000 |
3.2 |
11650 |
890 |
φ3000 |
13950 |
Y200L2-6 |
22 |
Y113M-4 |
4 |
37000 |
||
|
High weir type double helix |
2FLG-1200 |
5～8 |
2340～3200 |
310 |
φ1200 |
6125 |
Y132M2-6 |
5.5×2 |
Y100L1-4 |
2.2×2 |
15840 |
|
|
2FLG-1500 |
2.5～6 |
2280～5480 |
470 |
φ1500 |
7940 |
Y160M-6 |
7.5×2 |
Y100L-4 |
2.2×2 |
22110 |
||
|
2FLG-2000 |
3.6～5.5 |
7780～11880 |
800 |
φ2000 |
8900 |
Y200L2-6, Y200L-4 |
22;30 |
Y100L2-4 |
3.0×2 |
36341 |
||
|
2FLG-2400 |
3.67 |
13600 |
1160 |
φ2400 |
11500 |
Y200L-4 |
30 |
Y100L2-4 |
3.0×2 |
45874 |
||
|
2FLG-3000 |
3.2 |
23300 |
1785 |
φ3000 |
12140 |
Y225M-4 |
45 |
Y112M-4 |
4.0×2 |
73030 |
|
Type |
Model |
Screw rotation speed (r.p.m) |
According to the sand return processing capacity(t/d) |
According to the overflow capacity (t/d) |
Spiral diameter(mm) |
The length of the screw (mm) |
Trough slope |
Drive motor model |
Drive motor power(kw) |
Improve motor model |
Improving the power of the motor(kw) |
Weight (kg) |
|
Submerged single screw |
FLC-1000 |
1.6～7.4 |
216～1000 |
50-260 |
φ1000 |
7913 |
|
Y132M2-6 |
5.5 |
Hands move |
|
5195 |
|
FLC-1200 |
5～7 |
1150～1640 |
120 |
φ1200 |
8100 |
Y160M-6 |
7.5 |
Y100L-4 |
2.2 |
11200 |
||
|
FLC-1500 |
2.5～6 |
1140～2740 |
185 |
φ1500 |
10190 |
Y100L1-4 |
15320 |
|||||
|
FLC-2000 |
3.6～5.5 |
3890～5940 |
320 |
φ2000 |
12605 |
Y160L-6/4 |
11×2;15×2 |
Y100L2-4 |
3 |
29060 |
||
|
FLC-2400 |
3.64 |
6800 |
455 |
φ2400 |
13940 |
Y180M-4 |
18.5 |
Y112M-4 |
4 |
37267 |
||
|
FLC-3000 |
3.2 |
11650 |
705 |
φ3000 |
13950 |
Y200L4 |
30 |
Y112M-4 |
4 |
43500 |
||
|
Submerged double helix |
2FLC -1200 |
3.8～6 |
1770～2800 |
240 |
φ1200 |
8040 |
Y160M-6 |
7.5×2 |
Y100L1-4 |
2.2×2 |
19610 |
|
|
2FLC-1500 |
2.5～6 |
2280～5480 |
370 |
φ1500 |
10140 |
27450 |
||||||
|
2FLC-2000 |
3.6～5.5 |
7780～11880 |
640 |
φ2000 |
12600 |
Y200L2-6, |
22;30 |
Y100L2-4 |
3.0×2 |
50000 |
||
|
2FLC-2400 |
3.67 |
13700 |
910 |
φ2400 |
13700 |
Y200L-4 |
30 |
53491 |
||||
|
2FLC-3000 |
3.2 |
23300 |
1410 |
φ3000 |
13900 |
Y225M-4 |
45 |
Y112M-4 |
4.0×2 |
8490 |
