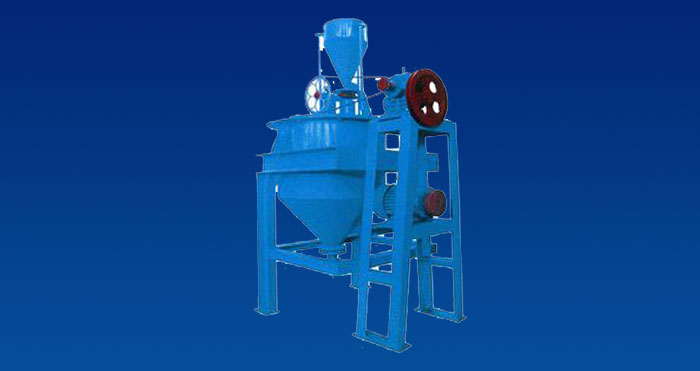

Disc Type Zinc Powder Feeder
|
Model |
Disc diameter |
Disk rotational speed |
Feed size |
quantificationally |
Motor model |
motor power |
Weight |
|
φ140 |
140 |
1.13 |
0～2 |
1.5～2.4 |
Y801-4 |
0.55 |
65 |
|
φ170 |
170 |
18.5 |
1.5～3.6 |
76 |
Due to low dosage of zinc powder, disc is 140 ~ 170 mm in diameter, and speed of about 1 r/min? Its characteristic is according to the size of the processing or the solution containing gold grade of adjust zinc powder adding quantity
The device by motor through a V belt and the secondary worm gear speed reducer drive, drive on the central axis of rotating disk? Add powder material in the hopper by gravity to fall on the disk, along with the rotating disk was scraper scrape discharging mouth
