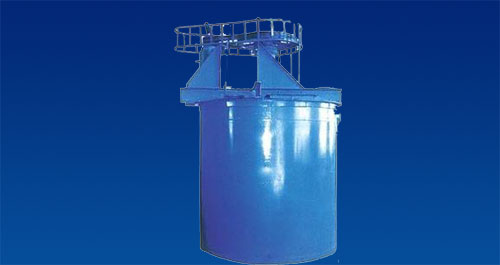

Double-impeller High-efficiency

[Catalog:Gold Mine Cyaniding] [Date:2014-10-29] [Hits:] [Return]

Product features:
The product is used for carbon slurry process, cyanide process, the leaching tank to form a complete set of separate carbon carbon sieve, carbon pump and other auxiliary equipment, the structure characteristics of upper and lower two layers of the impeller type for steel plastic bags, bolting, good balance, easy replacement, long life; The spindle consists of two layers, positioning flange connection, lifting height can be decreased; Multi-points aeration, mixing performance is good.
Second, the selection of details:
Generally adopts planetary cycloid reducer motor drive, simple structure, low cost, if need special order indicate the worm gear and worm drive way.
Double impeller efficient mixing carbon leaching tank technical parameter table

Model	Tub specifications （mm）	Effective volume （m3）	The impeller speed （r/min）	The impeller diameter （mm）	Feed tube diameter （mm）	Ore removal pipe diameter （mm）	Planetary cycloid reducer	Speed ratio	The motor power（kw）	Weight/kg
Model	Tub specifications （mm）	Effective volume （m3）	The impeller speed （r/min）	The impeller diameter （mm）	Feed tube diameter （mm）	Ore removal pipe diameter （mm）	Model	Speed ratio	The motor power（kw）	Weight/kg
φ2.5×2.5	2500X2500	10.5	65	800	2-φ133	2-φ133	XLD2.2-4-29	29	2.2	2800
φ2.5×3.15	2500×3150	13	57	935	2-φ125	2-φ125	XLD2.2-4-29	29	2.2	3120
φ3.0×3.15	3000×3150	18.93	51	1130	2-φ150	2-φ150	XLD4-5-35	35	4	5300
φ3.15×3.55	3150×3550	24	43	1260	2-φ150	2-φ150	XLD4-5-35	35	4	5488
φ3.5×3.5	3500×3500	29	46	1310	2-φ150	2-φ150	XLD4-5-35	35	4	6646
φ3.55×4.0	3550×4000	35	36.3	1310	2-φ150	2-φ150	XLD4-5-35	35	4	7820
φ4.0×4.5	4000×4500	50	33.5	1500	2-φ150	2-φ150	XLD7.5-7-43	43	7.5	8285
φ4.5×5.0	4500×5000	71.67	33.5	1750	2-φ159×6	2-φ159×6	XLD7.5-7-43	43	7.5	10800
φ5.0×5.6	5000×5600	98	31	1900	2-φ159×8	2-φ159×8	XLD11-8-47	47	11	13340
φ5.5×6.0	5500×6000	112	31	2100	2-φ159×8	2-φ159×8	XLD11-8-47	47	11	18745
φ7.5×8.0	7500×8000	268.6	21	2900	2-φ159×8	2-φ159×8	XLD22-10-47	47	22	32796
φ8.0×8.5	8000×8500	342	16.4	3200	2-φ159×8	2-φ159×8	XLD22-11-59	59	22	42467
φ8.5×9.0	8500×9000	395	18.5	3300	2-φ159×8	2-φ159×8	Y250-8		30	46623
