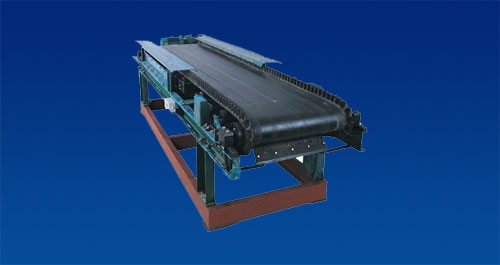

Belt Feeder

[Catalog:Feeding Series] [Date:2014-10-29] [Hits:] [Return]

Belt feeders are belt conveying equipment with shorter length, commonly have relatively low belt speed, and are suitable for conveying powdery materials.
Selection description:
Please indicate the models and lengths of belts when ordering.
The installation positions of motors can be shifted according to customer requirements, and the motors should be produced according to standard drawings without special requirements.
Feeders with different lengths can be designed and manufactured according to customer requirements.

Specifications	Belt width (mm)	Center distance of head and tail wheel (mm)	Diameter of head and tail wheel (mm)	Feeding capacity (t/h)	Feed size (mm)	Motor model	Motor power (kw)	Weight
500*1000	500	1000	219	10-100	0-50	YCT112-4B	0.75	266
500*1300	500	1300	219	10-100	0-50	YCT112-4B	0.75	345
500*1500	500	1500	219	10-100	0-50	YCT132-4A	1.1	450
500*4000	500	4000	219	10-100	0-50	YCT160-4A	2.2	660
650*2600	650	2600	219	77	0-50	YCT160-4A	2.2	560
800*4000	800	4000	219	25-250	0-80	YCT160-4A	2.2	934
800*4500	800	4500	400	25-250	0-80	YCT160-4A	2.2	1200
1000*2000	1000	2000	400	200-450	0-75	YCT160-4B	3	1549
1000*2500	1000	2500	400	200-450	0-100	YCT160-4B	3	2105
1000*6000	1000	6000	400	200-450	0-100	YCT225-4A	11	5214

Technical performance belt feeder
Drawing No.	Model	Belt width mm	Fifth wheel or drum center mm	Fifth wheel diameter	Feeding capacity t/h	Feed size mm	Motor		Weight kg
Drawing No.	Model	Belt width mm	Fifth wheel or drum center mm	Fifth wheel diameter	Feeding capacity t/h	Feed size mm	Model	Power kw	Weight kg
PG120300	1200×3000	1200	3000	Φ450	240～400	0～100	YCT160－4B	3
PG120600	1200×6000	1200	6000	Φ450	300	0～100	YCT225－4B	15
PG120650	1200×6500	1200	6500	Φ450	200～300	0～100	YCT225－4B	15
