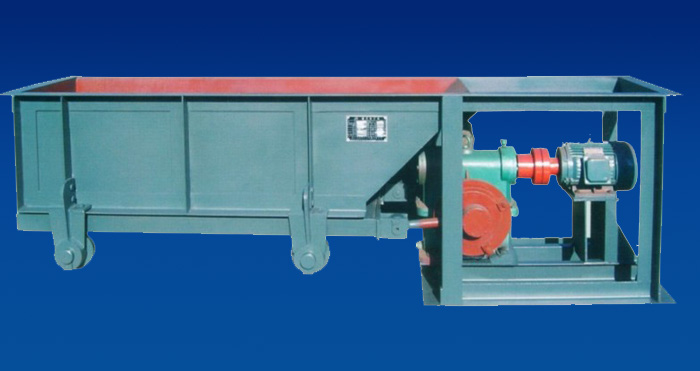

Chute Feeder
Chute feeders are commonly hoisted on the discharge openings of ore bins. Chute bottom plates do reciprocating motion for feeding, with the stroke frequency of 20-60 times/min and the stroke of 20-200mm. The feeding amount is determined by the stroke. The stroke can be appropriately adjusted by adjusting the eccentricity of eccentric wheels of driving devices.
Selection description:
The feeders should be supplied with corresponding feeding models according to the beneficiation scale and operation institutions, and are manufactured by matched manufacturers. The motors can be changed into adjustable-speed motors needing special order.
Technical parameter table of chute feeders
| Technical performance of chute feeders | ||||||
|
Model |
Discharge hole |
Max feed size mm |
Feeding capacity m3/h |
Motor |
Weight |
|
|
Model |
Power |
|||||
| CG300×300 | 300×300 | 50 | 10~20 | Y90L-4 | 1.5 | 265 |
| CG400×400 | 400×400 | 100 | 10~30 | Y112-6 | 2.2 | 535 |
| CG600×500 | 600×500 | 200 | 10.5～25.5 | Y112M－6 | 4 | 1054 |
| CG700×500 | 700×500 | 250 | 10～60 | Y112M－6 | 4 | 1100 |
| CG1000×1900 | 1000×1900 | 300 | 300 | Y160M－4 | 7.5 | 2691 |
| CG1240×980 | 1240×980 | 350 | 40～90 | Y160M－6 | 7.5 | 1710 |
| CG1240×1100 | 1240×1100 | 400 | 61～150 | Y160M－4 | 11 | 1850 |
| CG1400×2000 | 1400×2000 | 300 | 50～101 | JZT52-6 | 7.5 | 3472 |
| CG2400×1200 | 2400×1200 | 350 | 120～150 | YCT225－4B | 15 | 3183 |
| CG2300×1400 | 2300×1400 | 300 | 250～500 | Y180M－4 | 18.5 | 6895 |
