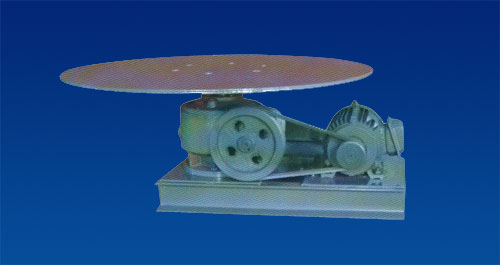

DK Disc Feeder
[Catalog:Feeding Series] [Date:2014-10-29] [Hits:] [Return]
DK type disc feeder for hanging open, suitable for particle size 20 mm powder material feeding, the feeding machine product structure is complex, more durable, lifting on the bottom of the powder ore bin on the mouth. By adjusting the position of scraper to adjust to the ore.
Selection of details:According to the processing scale and operating system put forward the corresponding feed model made by the manufacturers, the motor can be changed to control motor need to special order.
| Model |
The disc diameter（mm） |
Production capacity（t/h） |
Material particle size and（mm） |
Type of installation | Motor | Weight | |
| Model | Power（kw） | ||||||
| DK6 | 600 | 0.6-3.9 | 25 | Hanging type | Y90L-6 JZTY21-6 | 1.1 | 403 |
| DK8 | 800 | 1.4-7.6 | 30 | Hanging type | Y90L-6 JZTY21-4 | 1.1 | 555 |
| DK10 | 1000 | 2.5-16.7 | 40 | Hanging type | Y100L-6 JZTY32-4 | 1.5 | 827 |
| DK13 | 1300 | 4.2-27.9 | 50 | Hanging type | Y132S-6 JZTY32-4 | 3 | 1150 |
| DK16 | 1600 | 7-48.6 | 60 | Hanging type | Y132M1-6 JZTY41-4 | 4 | 2125 |
| DK18 | 1800 | 9.2-60 | 70 | Hanging type | Y132M2-6 JZTY42-4 | 5.5 | 2900 |
| DK20 | 2000 | 13.6-38 | 80 | Hanging type | Y132M3-6 JZTY42-4 | 5.5 | 3140 |
