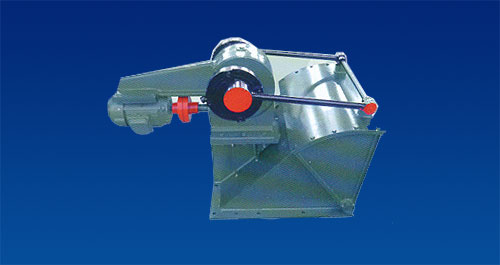

Swing Feeder

[Catalog:Feeding Series] [Date:2014-10-29] [Hits:] [Return]

Swing feeders are commonly used as the feeding equipment of ball mills and ore belt conveyors, and have two feeding capacity adjusting modes:
* adjusting the eccentricity of eccentric wheels;
* adjusting ore drawing gate plates
Selection description
The feeders should be supplied with corresponding feeding models according to the beneficiation scale and operation institutions, and are manufactured by matched manufacturers. The motors can be changed into adjustable-speed motors needing special order.

Model	Feed hole (mm)	Discharge hole (mm)	Stroke of eccentric wheel (mm)	Swing frequency (times/min)	Max feed size (mm)	Max feeding capacity (t/h)	Motor model	Motor power (kw)	Motor speed (r/min)	Weight (kg)	Applicable scale
300×300	300×300	300×30-125	0-90	46	30	6.5	Y802-4	0.75	1390	272
400×400	400×400	400×50-130	0-170	46	35	12	Y90S-4	1.1	1400	558	200Tons
600×600	600×600	600×50-150	0-200	46	50	25	Y90L-4	1.5	1400	613	500Tons
800×800	800×800	800×50-300	0-260	43	70	45	Y100L1-4	2.2	1430	726	1000Tons
