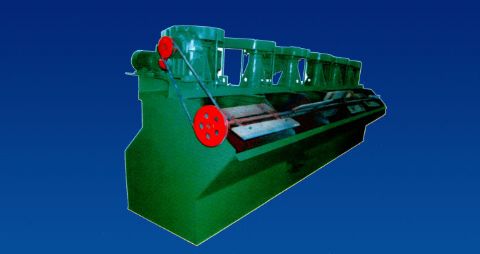

BF Flotation Machine
The product is improved on the basis of strong mixing in SF type flotation machine, used for iron ore and other large mineral sorting, characteristic is based on SF type with the blister plate, using centrifugal impeller, mixing with great strength.
1, when placing order, must provide the flotation process, provide the following content:
(1) the configuration and feed
NJ board number and transmission way (right transmission, drive on the left)
(3) feed box, box, undressed ore box number in the middle
(4) other special requirement
2, does not provide electrical control cabinet.
3, ram according to manufacturing drawings production, large-scale flotation machine adopts electric gate.
|
Model |
Effective volume |
L×W×H |
Impeller diameter (mm) |
Impeller rotational speed |
Air intake |
Motor model |
motor powe |
Processing power |
Weight of single tank |
|
BF-0.15 |
0.15 |
550×550×600 |
200 |
6 |
0.9-1.05 |
Y112M-6 |
2.2 |
0.06-0.16 |
270 |
|
BF-0.25 |
0.25 |
650×600×700 |
250 |
Y100L-6 |
1.5 |
0.12-0.28 |
370 |
||
|
BF-0.37 |
0.37 |
740×740×750 |
286 |
7.2 |
Y90L-4 |
0.2-0.4 |
470 |
||
|
BF-0.65 |
0.65 |
850×950×900 |
300 |
7.35 |
0.9-1.10 |
Y132S-6 |
3 |
0.3-0.7 |
932 |
|
BF-1.2 |
1.2 |
1050×1150×1100 |
450 |
7.02 |
Y132M2-6 Y132M1-6 |
5.5 4 |
0.6-1.2 |
1370 |
|
|
BF-2.0 |
2 |
1400×1450×1120 |
500 |
7.5 |
Y160M-6 |
7.5 |
1.0-2.0 |
1750 |
|
|
BF-2.8 |
2.8 |
1650×1650×1150 |
550 |
8.06 |
Y180L-8 |
11 |
1.4-3.0 |
2130 |
|
|
BF-4.0 |
4 |
1900×2000×1200 |
650 |
8 |
Y200L-8 |
15 |
2.4-4.0 |
2585 |
|
|
BF-6.0 |
6 |
2200×2350×1300 |
700 |
7.5 |
Y225S-8 |
18.5 |
3.0-6.0 |
3300 |
|
|
BF-8.0 |
8 |
2250×2850×1400 |
760 |
Y225M-8 |
22 |
4.0-8.0 |
4130 |
||
|
BF-10 |
10 |
2250×2850×1700 |
7.52 |
5.0-10 |
4500 |
||||
|
BF-16 |
16 |
2850×3800×1700 |
850 |
8.7 |
Y280S-8 Y280M-8 |
37 45 |
8.0-16 |
8320 |
|
|
BF-20 |
20 |
2850×3800×2000 |
10.0-20 |
8670 |
|||||
|
BF-24 |
24 |
3150×4150×2000 |
920 |
Y280M-8 |
45 |
12.0-24 |
8970 |
